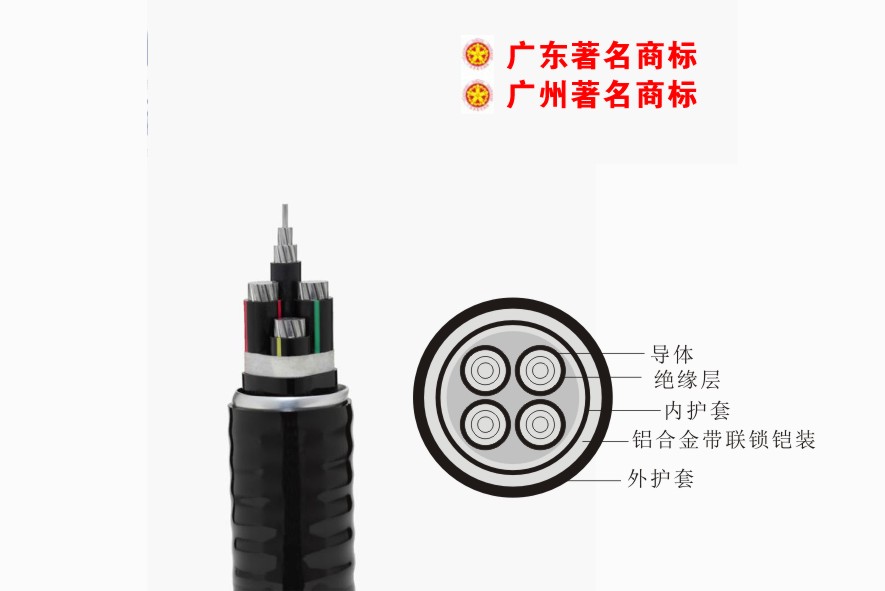

Product Name: XLPE insulated aluminum alloy tape interlocking armored PVC sheathed rare earth aluminum alloy power cable

Product Standard: refer to GB/T12706.1-2008

Product Features:

1. The rare earth aluminum alloy conductor has excellent electrical properties, creep resistance and corrosion resistance, and is an ideal choice for replacing copper conductors;

2. Insulation has excellent electrical insulation properties, high and low temperature resistance, corrosion resistance, and climate change resistance;

3. The cable has good bending performance and mechanical shock resistance;

4. It can meet the requirements of various flame retardant grades such as fire-resistant and halogen-free low-smoke flame-retardant Class A, Class B, and Class C.

Uses: This product is suitable for low-voltage power supply systems for power distribution, and is suitable for dry or humid places at 200°C, 180°C, 105°C and 90°C and below. It can be installed indoors and outdoors. It can be installed vertically, on a bracket or along a wall, or directly buried underground. The minimum bending radius is 7 times the outer diameter of the cable. Mainly suitable for places such as steel, metallurgy, petrochemical, shipbuilding, electric power, large venues, entertainment venues, mines, real estate, and hazardous areas.
